Harima Shipyard 3600ton Modified Design for China
This is an alternative somewhat modified version of the 3.600ton design offered to China by the Harima Shipyard, the differences are visual mostly but affects the stability of the design improving it.The deck structure got shortened, the gun turrets placed somewhat closer to the centre of the ship, the bridge moved aft and the aft superstructure's size got reduced. Not sure why these changes were made or who asked it but the final design became a bit more compact while all other stats remaiend the same. The tonage saved by these modifications might had been used to strengthen the protection system.
The design had the following characteristics:
Dimensions: 124,05 (pp) x 128,01 (wl) x 130,45 (oa) x 13,1 x 4,34 meters
Displacement: 3.600tons (standard)
Engines: 16.000shp Kampon Steam Turbines, 2 shafts
Range: 11.100km at 22km/h (6.000nm at 12knots)
Speed: 46km/h (25knots)
Armour: 25mm Deck, 51mm over Machinery, 19mm over Magazines Belt
Armaments:
4x2 14cm/50 Type 3 / 3rd Year Type Guns,
4x1 76mm/40 Type 3 / 3rd Year Type DP-AA Guns,
4x1 12,7mm or 13,2mm AA Guns
2x3 533mm Torpedo Tubes
30x Depth Charges
1x Seaplane, Nakajima E8N
Original Documents:
https://aa.archives.gov.tw/ELK/SearchDetailed?FullPath=B5018230601/0009/771.1/2841
https://aa.archives.gov.tw/ELK/SearchImageDetailed?fullpath=B5018230601/0009/771.1/2841
https://drive.google.com/drive/folders/1jUIp0Uo7CAu-W0DD9AXhsKgjmxmzOM5_

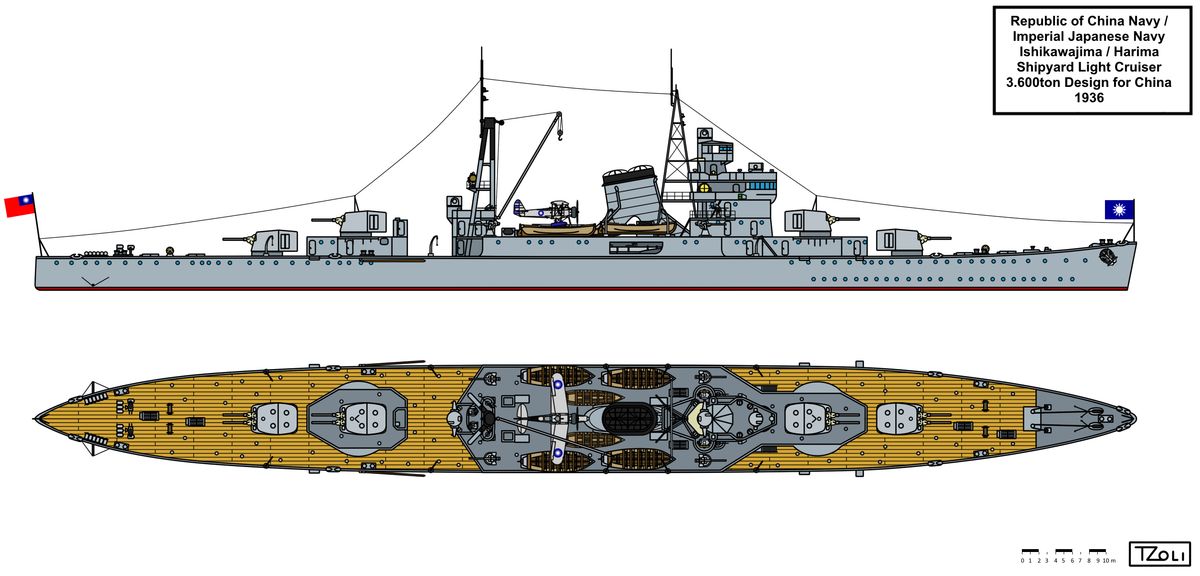

Drawings:
https://i.imgur.com/u7mYwX8.jpg
https://imgur.com/a/iWKKKBiApr 6, 2023
