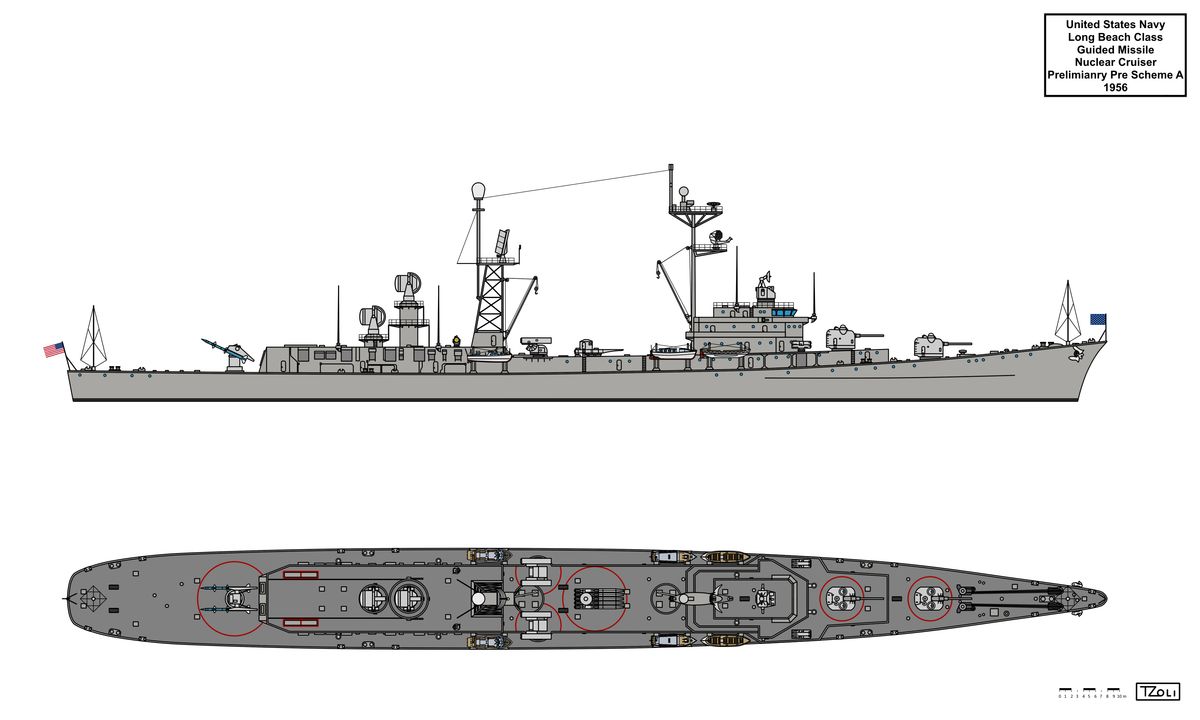

CLGN Pre-Scheme A
The first to what become the last true US cruiser and the very first nuclear propelled surface warship: USS Long Beach begun with humble beginnings of destroyer sized hull (Called DLGN or Nuclear "Frigate"). At first in the early-mid 1950's the USN wanted 3 kinds of Nuclear propelled vessels: A fleet escort eg a Destroyer, A major surface combatant eg a cruiser and a major strike unit eg a Carrier, but it was soon become evident that the size and weight of a Nuclear Power Plant would make the Destroyer unfeasible or to the very least uneconomical to build. This is evident in this Pre-Scheme A proposal which had basically the same armament as a Farragut class Guided Missile Destroyer but on a larger and much heavier hull!The designs had these characteristics:
Dimensions: 173,73m (oa) x 16,76m
Displacement: 8.900tons (Full Load)
Engines: 80.000shp Westinghouse C1W Nuclear Reactors, 2 shafts
Speed: 59km/h (32knots)
Armaments:
2x1 5"/54 Mark 18 DP-Guns,
1x2 RIM-2 Terrier SAM,
2x2 RAT Launchers,
1x5 533mm Torpedo Tubes
2x3 324mm Torpedo Tubes
Sensors:
SPS-10 - Surface-Search Radar
SPS-12 - Surveillance radar
SPS-26 - 3D Air-Search Radar
2x SPQ-5 - Terrier Illumination/tracking radars
SPG-25 - Gun Director Radar
TACAN - TACtical Air Navigation System
Original Sketch:
i.imgur.com/hXZcYwx.pngApr 20, 2023
